Curtain wall and façade opening window with structural glazing
WICTEC 50 & WICLINE 70SG

Evolution of the façade system

Due to the increasing architectural demands for performances and design, WICONA is developing its WICTEC aluminum façade system:

  • The maximum glass load adjustment allows up to 150 kg of additional infill
  • New range of façade profiles
  • Better tightness for transom and mullion
  • The installation of the glazing has also been simplified and optimized thanks to the isolated pressure plate and square-jointed

New façade opening window with structural glazing

WICONA now offers a new concealed glass sash WICONA with WICLINE 70SG, with a particular elegant design:

  • Flush exterior aesthetic design, and concealed hinges, drainage and openings
  • Maximum amount of natural light with slim sight lines
  • 3 design options

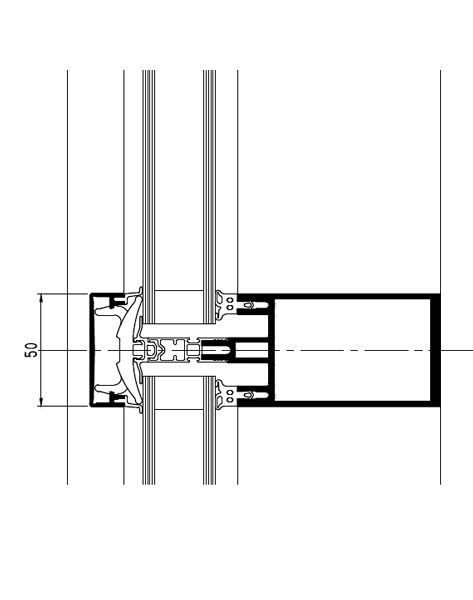

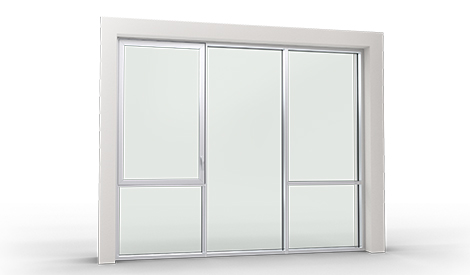

WICTEC 50 façade

Technical characteristics:

  • Made with Hydro CIRCAL 75R recycled aluminum profiles
  • Cradle to Cradle Silver Certification
  • Sight lines: 50 mm
  • Weight: up to 550 kg
  • Infill thickness from 3 mm to 63 mm


Performances:

  • Thermal:

- Ucw = 1.5 W/(m²K), double glazing

- Ucw = 1.0 W/(m²K), triple glazing

  • Air (NF EN 12152) - Water (NF EN 12154) - Wind (NF EN 13116): Class AE - RE1200 - 2000/-3200
  • Acoustic: Rw (C ; Ctr) = 45 (-1 ; -4) dB
  • Buglar resistant EN 1627: RC1N, RC2N, RC2, RC3


Intended market:

  • Offices
  • Commercial
  • Tertiary
  • Hotels and health


Availability date: during 2020

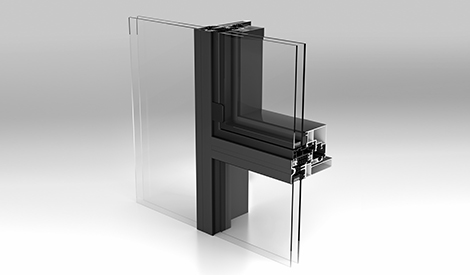

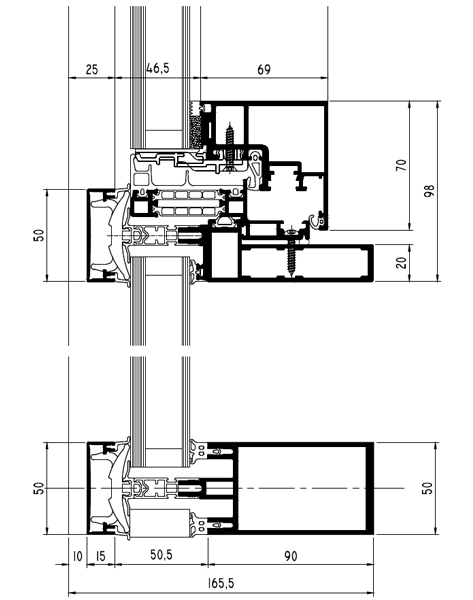

WICLINE 70SG façade opening window with structural glazing

Technical characteristics:

  • Made with Hydro REDUXA 4.0 low carbon aluminium
  • Cradle to Cradle Bronze Certification
  • Maximum sash dimensions: L 1700 mm x H 2500 mm
  • Weight: French opening = 160 kg, Turn/tilt = 130 kg
  • Half mullion and half transom
  • Opening types: French opening, turn/tilt, tilt/turn and tilt


Performances
:

  • Thermal: Uf = 0.74 W / (m²K)
  • Air (NF EN 12207) - Water (NF EN 12208) - Wind (NF EN 12210): Class 4 – E750 – C4


Intended mark
et:

  • Commercial
  • Tertiary
  • Offices
  • Hotels and health


Available on the market
